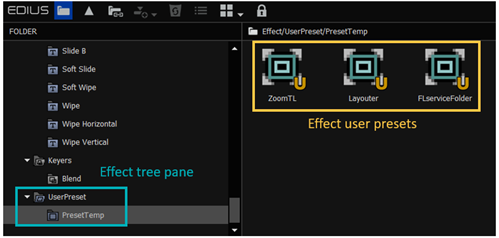

Effect window is consisted from two panes (effect tree and presets. Tree pane and effect preset can be backed up / restored separately.

2) Right-click on UserPreset (tree name) then select [Export] context menu

3) Select destination and type preset file name then click [Save]
     NOTE: Recommend to type (EffectTree) prefix for the file name

4) (EffectTree){PRESETNAME}.tpd file will be saved

5) If you want to back up more presets, repeat step#2 and #3

Back up effect user preset:

1) Start a project then go to effect window (right-pane)

2) Right-click on the preset you want to back up then select [Export] context menu

3) Select destination and type preset file name then click [Save]
    NOTE: Recommend to type (EffectUP) prefix for the file name

4) (EffectUP){PRESETNAME}.tpd file will be saved

5) If you want to back up more presets, repeat step#2 and #3

1) Start a project then go to effect window (left-pane)

2) Right-click on Effect (tree name) then select [Import] context menu

3) Open dialog will appear. Select backed up tree pane .tpd file then click [Open]

4) Effect tree pane will be restored

5) If you want to restore multiple panes, repeat step#2 and #3

6) Once the tree pane restored, restore the user preset in the right-pane

1) Start a project then go to effect window

2) In the left-pane, go to the restored tree pane

​​​​​​​3) Go to the right-pane

4) Right-click on palette (blank part) then select [Import] context menu

5) Open dialog will appear. Select backed up (EffectUP){PRESETNAME}.tpd then click [Open]

6) If you want to back up more presets, repeat step#4 and #5
