Checking/Adjusting Effects
Check, adjust, or delete effects applied to a clip.
Showing/Hiding [Information] Palette
The selected clips and effects are displayed in the [Information] palette.
1) Click [Toggle Window Display] of the timeline.
2) Click [Information].
-
The [Information] palette appears.
-
Click [View] on the menu bar, and click [Window] → [Information].
-
Click [View] on the menu bar, and click [Window] → [Show All] or [Hide All], to show/hide all the tab windows at one time.
-
Showing/hiding the tab window: [H]
Showing/Hiding [Effect] Palette
Displaying the [Clip Marker] List
Displaying the [Sequence Marker] List
-
When the show/hide setting for the [Information] palette is switched, the show/hide setting for the tabs of the bin window, source browser window, and tab windows combined with the [Information] palette is also switched. To switch the show/hide setting separately, release the association of the window or tab windows.
[Information] Palette
(1) |
Information area |
Display information such as the file name or duration. The displayed contents differ depending on the part selected on the timeline. |
(2) |
Effect list |
Display applied effects in a list. For a clip with a video part, [Layouter] is displayed. Double-click an item to display the [Layouter] dialog box for cropping and transformation. The number on the upper left of the list shows the number of available effects/number of applied effects. |
(3) |
[Open Setup Dialog] |
Display a settings dialog box to adjust each effect or the [Layouter] dialog box. |
(4) |
[Delete] |
Delete the effect. [Layouter] items cannot be deleted. |
(5) |
Enable/Disable |
Temporarily disable the layouter or effect settings. Uncheck this item to disable the settings. |
Checking/Adjusting Effects
You can check or adjust the applied effect from the [Information] palette.
1) Click the area with effects applied on the timeline.
-
A list of the applied effects is displayed in the [Information] palette.
2) Click an effect name on the effect list in the [Information] palette, and click [Open Setup Dialog].
-
A settings dialog box to adjust each effect appears.
-
Double-click on an effect name in the effect list.
-
Drag and drop an effect name onto [Open Setup Dialog] in the [Information] palette.
-
Right-click on an effect name in the [Information] palette, and click [Open Setup Dialog].
3) Adjust the effect.
-
For adjustment of effects, refer to the procedures to apply each effect.
-
You can specify a name to and save an adjusted parameter in the [Effect] palette.
Parts Where Effects Are Applied

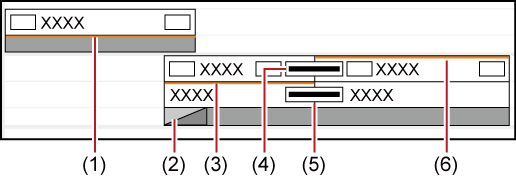

VA track
(1) |
Key |
|
(2) |
Track Transition |
|
(3) |
Audio filter |
|
(4) |
Clip transition |
|
(5) |
Audio cross fade |
|
(6) |
Video filter, layouter |

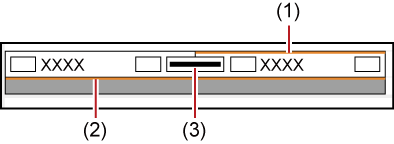

V track
(1) |
Video filter, layouter |
|
(2) |
Key |
|
(3) |
Clip transition |
A track
(1) |
Audio filter |
|
(2) |
Audio cross fade |
T track
(1) |
Title mixer |
Enabling and Disabling Effects
You can temporarily disable the layouter or effects.
1) Click the area with effects applied on the timeline.
2) Uncheck the item in the effect list in the [Information] palette.
-
Check this item to enable the effect, and uncheck to disable the effect.
-
Right-click on an effect name in the effect list, and click [Enable/Disable].
-
Select an effect name in the effect list, and press [Ctrl] + [F] on the keyboard.
Deleting Effects
You can delete the applied effects.
Deleting Effects Using Timeline
To delete a filter
1) Select a clip with the effect applied.
2) Click [Edit] on the menu bar, and click [Delete Parts] → [Filter] → an item.
-
Right-click a clip, and click [Delete Parts] → [Filter] → an item.
-
Right-click the mixer area with the effect applied and click [Delete].
-
Clip transition: [Shift] + [Alt] + [T]
-
Audio cross fade: [Ctrl] + [Alt] + [T]
-
Key: [Ctrl] + [Alt] + [G]
-
Transparency: [Shift] + [Ctrl] + [Alt] + [G]
-
Video filter: [Shift] + [Alt] + [F]
-
Audio filter: [Ctrl] + [Alt] + [F]
-
Deleting all transitions: [Alt] + [T]
-
Deleting all filters: [Shift] + [Ctrl] + [Alt] + [F]
Deleting Effects Using [Information] Palette
1) Click the area with effects applied on the timeline.
2) Click an effect name on the effect list in the [Information] palette, and click [Delete].
-
Drag an effect name out of the [Information] palette.
-
Right-click an effect name and click [Delete].
-
Select an effect to delete and press [Delete] key of the keyboard.
-
When you set the transition or audio cross fade, green line (cut point) is displayed. This is the border for the transition before setting. If you delete the transition or audio cross fade, the Out point of the front clip and the In point of the back clip move back to the cut point.
